Purpose and characteristics:

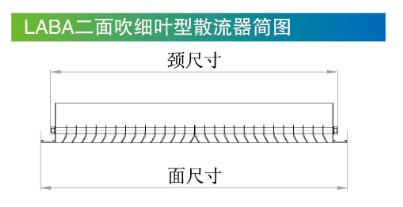

It highlights the linear design features and is suitable for the circular air outlet and return air outlet of indoor and hall. One side blowing (Laba) and two side blowing (la2ba). The inclination angle of the blade is 30 degrees, and the blade is fixed.
Explain:
Customized size ≤ 5.8m, ＞ 5.8m adopts splicing method. It can be customized as fixed or detachable, or non-standard arc and angle shape according to the user's requirements. According to the user's requirements, it can be made into various radians, various angles and various air outlets with long bottom, arc type and angle type, which can be used. The fine leaf and fine leaf blow on both sides, flat leaf type, which must be noted when ordering, top mounting, side mounting, radian, arc length, etc.
Purpose and characteristics:
It highlights the linear design features and is suitable for the circular air outlet and return air outlet of indoor and hall. One side blowing (Laba) and two side blowing (la2ba). The inclination angle of the blade is 30 degrees, and the blade is fixed.
Explain:
Customized size ≤ 5.8m, ＞ 5.8m adopts splicing method. It can be customized as fixed or detachable, or non-standard arc and angle shape according to the user's requirements. According to the user's requirements, it can be made into various radians, various angles and various air outlets with long bottom, arc type and angle type, which can be used. The fine leaf and fine leaf blow on both sides, flat leaf type, which must be noted when ordering, top mounting, side mounting, radian, arc length, etc.
